用处:

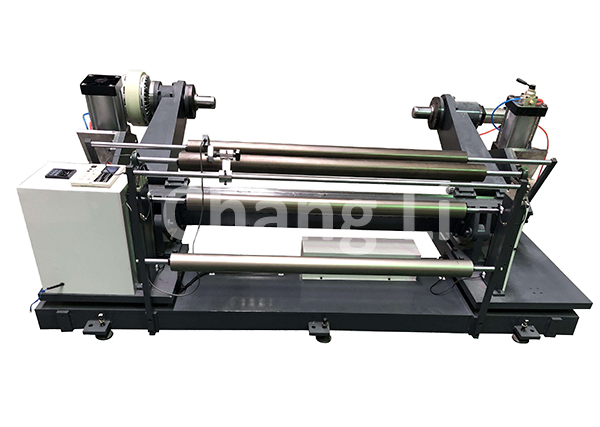

该型放料架合适的于无行吊车间管理,承载卷桶打印纸张、氟塑料胶片,真皮,无纺织布等重形卷桶数据资料 use:This type of rack is suitable for non-travel workshops, loading heavy-duty reel materials such as web, plastic film, leather, non-woven fabric, etc.苏州特色:放卷接纳孩子无轴搬运料,自动伸缩,自动式调宽细,水冷式磁粉汽车盘式制动器,料卷自动起伏,搬运料快速、效力待定高。由拉伸应变感测器器做完自主拉伸应变有节制。Features:The unwinding adopts shaftless loading and unloading, pneumatic locking, manual width adjustment, water-cooled magnetic powder brake, pneumatic lifting of material roll, convenient loading and unloading, and high efficiency. Automatic tension control is achieved by a tension sensor.(待选购液压系统送料及电动四轮调薄厚)(Optional hydraulic loading and electric width adjustment)
首要手艺参数:Main Technical Parameters
型号 Model | 1300 | 2000 |
质料宽(kuan)度MAX. Width of raw material | 1300mm | 2000mm |
放卷(juan)直径约Max.parent Web Diameter | Φ1400mm | Φ1400mm |
权重 Machine Weight | 2300kg | 3500kg |
样式形(xing)态面(mian)积 Overall Dimensions | 2650×1300×800mm | 3050×1300×800mm |
可以乙酰乙酸恳请 个人定制辅助装备。Can be made according to the product requires special equipment.
