首先要工艺参数设置 Main Technical Parameters

机型 Model	CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
卷材宽度 MAX.Parent Web Width	1000mm	1300mm	1500mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ300mm	Φ300mm	Φ300mm
速率 Max.Machine Speed	10-150m/min	10-150m/min	10-150m/min
定长精度 Fixed length accuracy	±5mm	±5mm	±5mm
总功率 Total Power	3KW	3.5KW	4.5KW
分量 Machine Weight	1000kg	1200kg	1500kg
形状尺寸 Overall Dimensions 任务电压 Working Voltage	2600×2000×1600mm      二(er)相220V50HZ	2600×2200×1600mm      二相220V50HZ	2600×2500×1600mm      三相(xiang)380V50HZ
纸芯规格 Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)

同用大规模设备重在在种类纸品，纸塑结合类，膜类等装潢素材和包装设计素材的复卷修边模切。

身体机能及一大特色 1.滤油机敞开心扉台达伺服电机定长上料功能，在速度作业中坚定高精密度。2.PLC触碰屏自觉权计米，米数自觉权更改。3.圆刀/直刀纵切废边拒绝的排放组装。4.气动式式主动的上料机，收、放护符配气胀轴。5.主动地割断、驻车时分轻松更改，预送预测出收护符再坚持收料等功用。

Scope of application

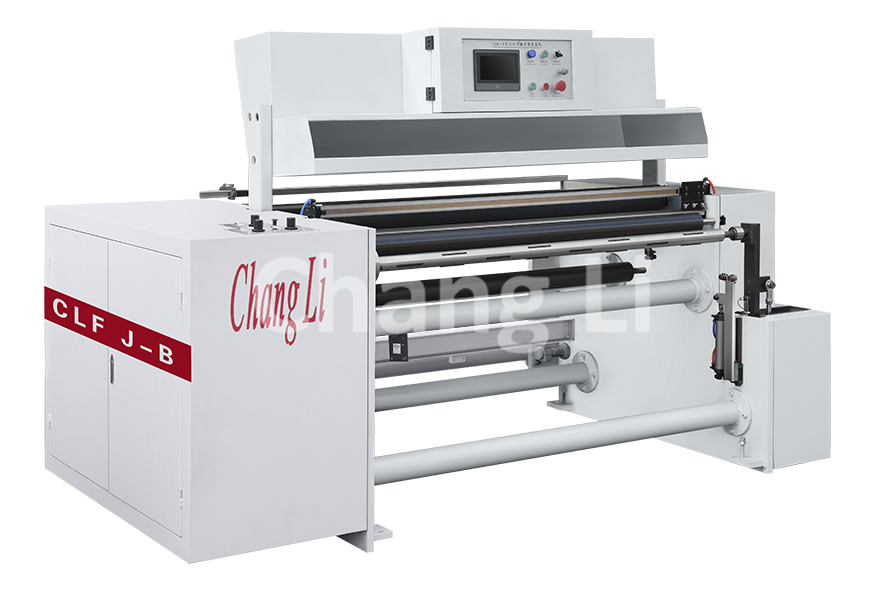

This machine is mainly used for re-winding and trimmꦬing of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics

1. This machine adopts servo fixed length feeding to maintain high precision d🐲uring 💛high speed operation.

2. PLC touch screen automatically counts meters, meters are automatically s✃et.

3. Round knife / straight knifeဣ slitting automatic waste discharge device.

4. Pneumatic aไutomatic feeding, receiving and discharging reels w🍃ith air expansion shaft.

5. Automatic cutting, free parking time setting, pre-feedi🏅ng to rewind and continue to receive mꦫaterials.
