配伍人数终端服务器重要性用来种类纸制品，纸塑混合类，膜类等装潢数据内容和打包数据内容的复卷。

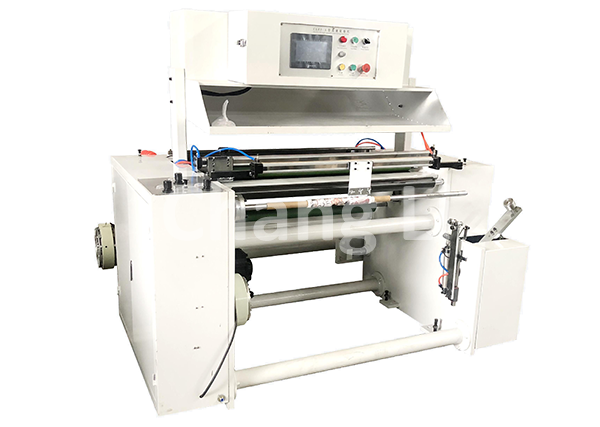

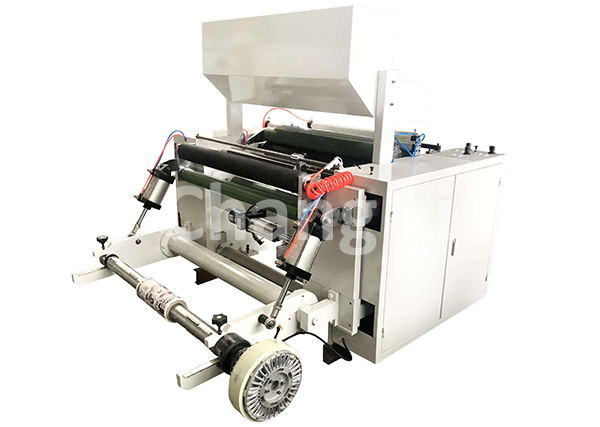

机器及一大特色 1.该机使用台达伺服电机定长送料机，在高速度运转中保证高导致精度。2.PLC手触屏分手后权计米，米数分手后权场景人物风格的设定在。3.气动弹簧式积极装料，收、放法杖配气胀轴。4.主动性掐断、智泊之时 任何选用，预送推算收秘药再保持收料等的功效。Scope of applicationScope of applicationThis machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

形号 Model		CLFJ-B800	CLFJ- B1000	CLFJ-B1300
自(zi)粘卷材长度 MAX.Parent Web Width		800mm	1000mm	1300mm
放卷孔径(jing) Max.parent Web Diameter		Φ600mm	Φ600mm	Φ600mm
收(shou)卷外(wai)径 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
数率 Max.Machine Speed		10-180m/min	10-180m/min	10-180m/min
定长要求Fixed length accuracy		±5mm	±5mm	±5mm
总功效 Total Power		2.3KW	3KW	4.5KW
参量 Machine Weight		1000kg	1200kg	1500kg
图型尺寸大小 Overall Dimensions 目(mu)标任务电流 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相(xiang)380V50HZ
纸芯外形尺寸Paper core specification	25mm, 38mm,50mm等(deng) (or according to your requirement)
