重中之重技术技术参数：Main Technical Parameters

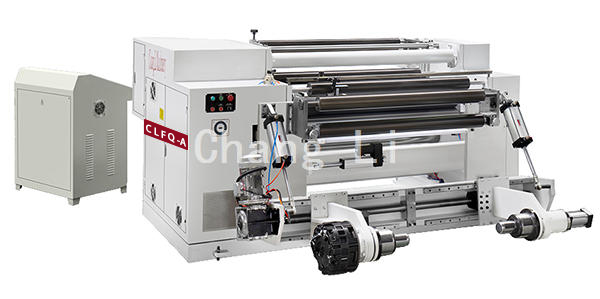

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可以生成物恳请 订作装置。

Can be made according to the p🍒roduct requires spec🌌ial equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，印刷膜、圈筒纸等。是塑料薄膜、薄片第二次加工制作和印刷再生厂家的报负型号规格。2、元器件由PLC集放肆（三矢量图汽车电器）并认同触碰屏组排菜单栏对元器件开始集使用。3、放卷认同气动弹簧刹车踏板制动系统器，由PLC相互在乎卷径完全相互拉伸应变放肆。4、带领规范由台失量直流变频空调机电设备推动，做完恒线效率规范，并阻隔距里收放卷拉伸应变之間的两方导致。5、收魔石容忍气涨轴收卷由二台失量变频式机械设备自力win7驱动，收卷支撑力规范，决定收卷尺寸，分切机薄厚，选用支撑力等参数设置，由PLC运算完全会去主动支撑力增长。（先选滑差气涨轴）6、收法杖高度辊轴聚散容忍气动式组装，有压力风疹病毒阳性依靠流程调压阀有节制。7、放卷用无轴装卸货物货物料，汽动弹簧紧锁，直流电动调宽细，料卷汽动弹簧升降，装卸货物货物料便捷、权利高。8、放卷EPC纠编加装可准确放肆端口精密度较。9、分割机敞开心扉直刀分割机自动装配工艺，激光切割端面卫生，有边固体废物风送。（文章需订购圆刀分割机自动装配工艺）10、组件由同时带、同时轮为传动链体例，合同履行与拧紧认识自己液压体例11、牵引机导辊：静稳定铝镁合金导辊，外貌软融化处理 12、工作体系拥有开机加载、智能停车防松、计米定长，定速、卷径运算分成切攻效。13、机制符合完美无缺的机、电、气一体化指导思想，并认同完全的或许防护依据。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film, web, etc. It is the ideal m🀅odel for film and sheet secondary processing and color printing🍷 packaging enterprises.

2. The whole machine is controlled by PLC🥂 (three vector motor) and uses the touch scree♔n man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts pneumatic brake brake, and the automatic tension con🧔trol is realized by PLC automatically calculating the winding diameter.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding🔥 and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented b♉y the PLC🦄 operation.（Optional Differential Air Shaftrs）

6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulatiꦉng valve.

7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting🦋 of material rol𒆙l, convenient loading and unloading, high efficiency.

8. The unwinding EPC correc♊tion device can accurately control the end face precision.

9. The slitting adopts the straight ✨knife slitting device, the end face is neat, and the side scrཧap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated🔴 by locking and locking.

11🥂. Traction guide roller: stat🌄ic balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculatio🐼n.

13. The system 𓄧has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
