核心学手艺技术参数Main Technical Parameters：

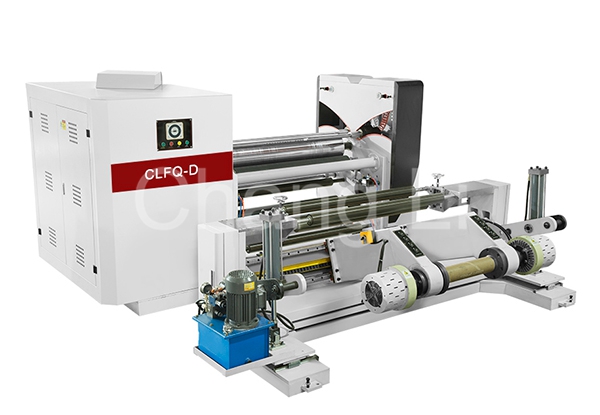

cpu型号 Model	CLFQ-D1150	CLFQ-D1350	CLFQ-D2650
zui大详细资料屏幕宽度匹配MAX. Width of raw material	1120mm	1320mm	2620mm
zui大放卷的直径Max.parent Web Diameter	Φ1500mm	Φ1500mm	Φ1500mm
zui大收卷内直径Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ680mm
zui高机效率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
資料高度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总公率 Total Power	14KW	16KW	19KW
参量 Machine Weight	3800kg	4300kg	4800kg
外形面积 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×3900×1450mm
zui小分切机参数 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

可依照规定终产物恳求 尤为私人定制技能。Can be made according to the product requires special equipment.

合用规模
外表卷取复卷分切机合用于卷筒纸、塑胶片、铝箔、PVC、塑料薄膜、无纺布、熔喷布、绝缘资料等包装资料的分条复卷是对资料停止藐小规格分切的抱负装备。

机能及特色
1.放(fang)卷主(zhu)动(d🐬ong)超声波纠偏(pian)、接(jie)纳无(wu)轴液♔(ye)压高低料，摆布间距(ju)调理均由液(ye)压实现，磁粉主(zhu)动(dong)张(zhang)力(li)节(jie)制。

2.收卷由两个路由器矢量图机电工程专业win7驱动与主机结构联调合理后面卷取与表皮打架完全相同，双轴结合在一起收卷，从不咬口。

3.主机传动由变频器节制，变频机电驱动，加加速不变疾速。
4..并设有预置主动计米，计较卷径，报警停机等功效。
5.接纳(na)圆刀直(zhi)刀纵切，分(fen)切盘面整(zheng)洁，﷽废边主动解除(chu)。

6.配件由PLC液晶屏屏组排界面显示自觉弹力有节制。 Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials. Performance and characteristics1. The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
