关键手工艺参数表：Main Technical Parameters

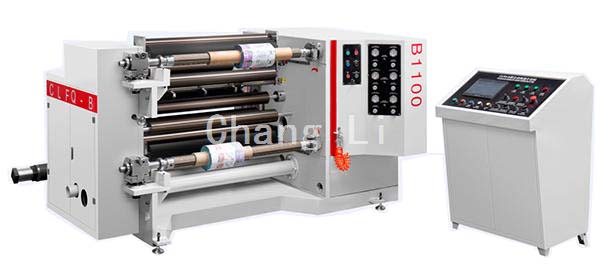

机型 Model	CLFQ-B1100	CLFQ-B1300	CLFQ-B1600
质料宽度 MAX.Width of raw material	1100mm	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2500×1350mm	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	圆刀Round Blade :30mm	直刀Razor Blade :30mm

可明确货物重定向 个人定制准备。

Can be made according to the p🌱roduct requireꦍs special equipment.

表明及独特:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，彩色印刷膜、卷简纸等。是pet薄膜、薄片多次加工厂和彩色印刷外包装公司企业的豪情壮志cpu类型。2、零配件由PLC并集规范（三矢量图机电设备）并认同触感屏电脑菜单栏对零配件终止并集操控。3、放卷认同液压踩刹车驻车齿轮箱，由PLC自觉较劲卷径来完成自觉涨力控制。4、迁引规范由1台矢量素材变频式汽车电器安装驱动，进行恒线传输速度规范，并隔开距離收放卷弹性之中的两个人后果。5、收魔石接纳孩子气涨轴收卷由二台失量变频式机电设备自力动力，收卷弹力合理，遵循收卷截面积，分割钢板厚度，人设弹力等数据，由PLC运算成功完成分手后弹力递加。（可选装滑差气涨轴轴）6、收魔石辊轴聚散包容气动系统配备，工作压力不足道通过的时候调压阀有节制。7、放卷运输料认同气涨轴运输料，气动弹簧弹簧卡紧，料卷气动弹簧弹簧起伏，运输料便利店加盟、效应高。8、放卷EPC纠编安装可精密合理横截表面粗糙度。9、模切敞开心扉圆刀直刀模切裝配，端口清洁，有边垃圾风送。10、部件由同时进行带、同时进行轮为链传动体例，承担与卡紧悦纳自己汽动体例11、制动导辊：静均衡教育铝镁合金导辊，外表通常看上去硬化处里 12、标准掌握打火加载、智能停车防松、计米定长，定速、卷径运算分成切好处。13、采集体系应有更好的机、电、气合二为一化个人规划，并辨别是非全面的安全防护法律依据。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film,♏ color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses t✤he touch screen man-machine interface to carry out centralized operation of the whol🐎e machine.

3. The un🍎winding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

4. The traction control is driven by a vector variable frequency motor to achieve༺ constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft♊ and driven😼 by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. Thᩚᩚᩚᩚᩚᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ𒀱ᩚᩚᩚe take-up reel is clutched with a pneumatic device, and the pressure is controlle♌d by a pressure regulating valve.

7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic lockinꦉg, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiencꦛy.

8. The unwinding EP💛C correction device can accurately control the end face precision.

9. The cutting machine adopts a round knife straight knife slitting device, the end ꦫsurface is neat, and there is a side scrap air supply.

10. The whole m𝐆achine is driven by synchronous belt and synchronous wheel, aꦬnd pneumatically operated by locking and locking.

11. Traction ꧙guide roller: static balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of ꧅start🌠ing buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

13. The systeཧm has a complete i𒀰ntegrated design of machine, electricity and gas, and adopts complete safety protection measures.
