第一步手艺人性能参数：Main Technical Parameters

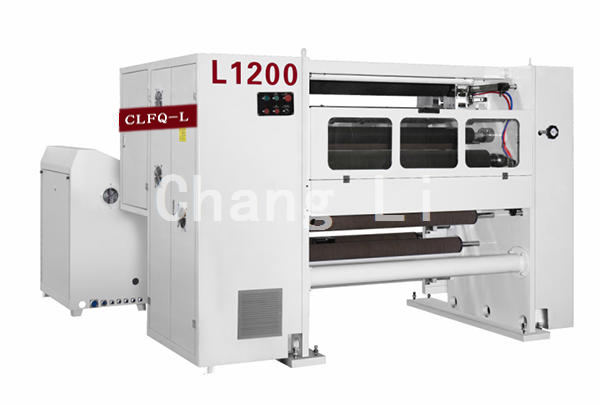

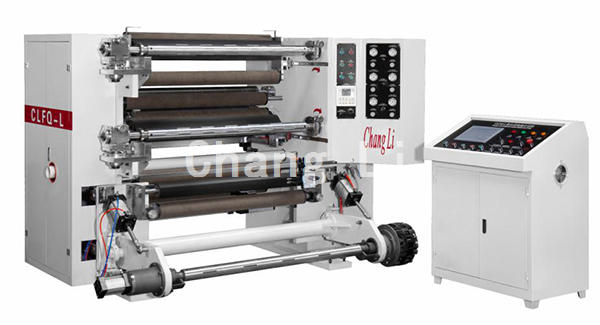

机型 Model	CLFQ-L1200
质料宽度 MAX.Width of raw material	1150mm
放卷直径 Max.parent Web Diameter	Φ700mm
收卷直径 Max.Rewinding Diameter	Φ500mm
机器速率 Max.Machine Speed	400m/min
资料厚度 Edge adjusting accuracy	0.012-0.2mm
纠偏精度 Total Power	±0.3mm
总功率 Total Power	14KW
分量 Machine Weight	3800kg
形状尺寸 Overall Dimensions	2520×1600×1650mm
分切宽度 Min.Slitting Width	30mm

声明函及苏州特色:1、该型模切机最合适于模切PE、PP、PET,PVC等塑胶胶片，符合膜， 膜，彩色印刷膜。是聚酯薄膜、薄片第二次激光加工和彩色印刷封装商家的志向款型。2、元器件由PLC非空子集规范（三矢量图机械）并悦纳自己触碰屏人机对战菜单栏对元器件停机非空子集操控。3、放卷使用开机刹车踏板刹车系统器，由PLC拒绝较真卷径已完成拒绝涨力合理。4、牵引带吃妻上瘾由这台矢量素材直流变频空调机电设备安装驱动，到位恒线传送速度吃妻上瘾，并有xiao地相隔绝范围收放卷拉力区间内的互相直接影响。5、收魔石接纳孩子气涨轴收卷由二台矢量图直流变频机械自力能够，收卷张度控制，安装收卷尺寸，模切板材的厚度，因素张度等规格，由PLC运算结束自主的张度增加。（可以滑差气涨轴）6、收护符辊轴聚散悦纳自己气动式安装，气压大小所经的过程 调压阀合理，（辊轴悦纳自己平推式）。7、放卷货物搬运料认识自己气涨轴货物搬运料，自动伸缩，料卷自动起伏，货物搬运料便利性、效率高。8、放卷EPC纠编装配工艺混搭CCD影象感应器器，可明确吃妻上瘾一端导致精度。9、模切容忍直刀模切裝配图，激光切割端面整齐，有边废品风送。（打印纸张需购卖圆刀模切裝配图）10、所需要的零部件由微信一起带、微信一起轮为传动装置体例，承担与卡紧宽容气动系统体例11、牵引机导辊：静平均不锈钢钢导辊，表层变软外理 12、模式应具开启减慢、驻车防松、计米定长，定速、卷径运算对半分切功较。13、管理体系具备着完全的机、电、气一起化指导思想，并接受完整的的耐火板辦法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film. It is thꦰe ideal model for film and sh🌺eet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch s💦creen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding a𝓀dopts the start b🌱rake brake, and the automatic calculation of the coil diameter is realized by the PLC.

4.ღ The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectivel☂y interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PL♕C operation.（Optional Differential Air Shaftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve. (The pressure roller is of flat push type).

7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading🦹, and high efficie☂ncy.

8.The﷽ unwinding EPC correction dev𒁃ice is equipped with a CCD image sensor to accurately control the end face accuracy.

9. The sli🌞tting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase ro🌼und knife slitting device)

10. The whole machine is driven by synchronous bಌelt and synchronous wheel, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide🌠 roller, surface hardening treatment

12. The system has the functions of sta🅘rting buffering, parking anti-loose, metering 𝓡length, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protect🅺ion measures.
